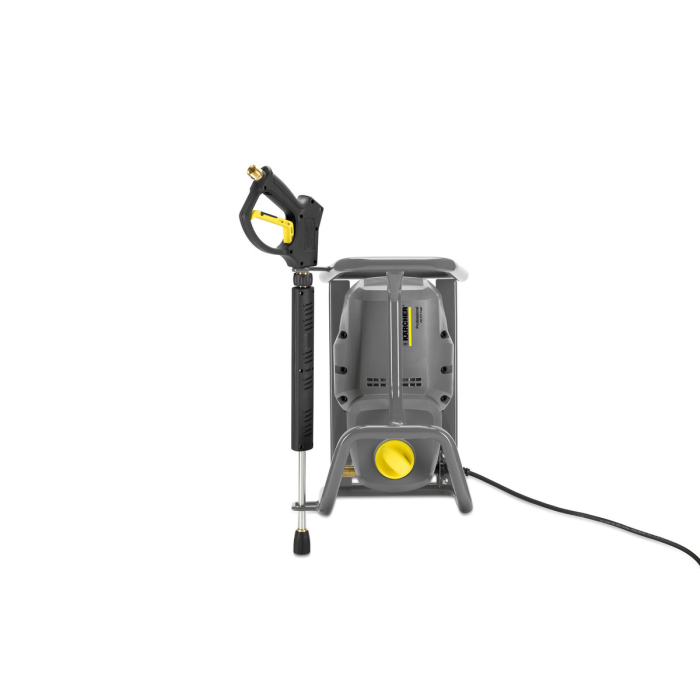

A lot of power for less money: thanks to its robust steel frame, the HD 5/11 Cage Classic high-pressure cleaner has been designed for even the harshest conditions. Easy to transport thanks to the ergonomic handle, the long-lasting machine is suitable for stationary and, in particular, mobile applications. It can be mounted on the floor or on the wall. And finally, the HD 5/11 Cage Classic naturally also impresses with its cleaning power (110 bar pressure).

Feature and Benefits

Durable and robust

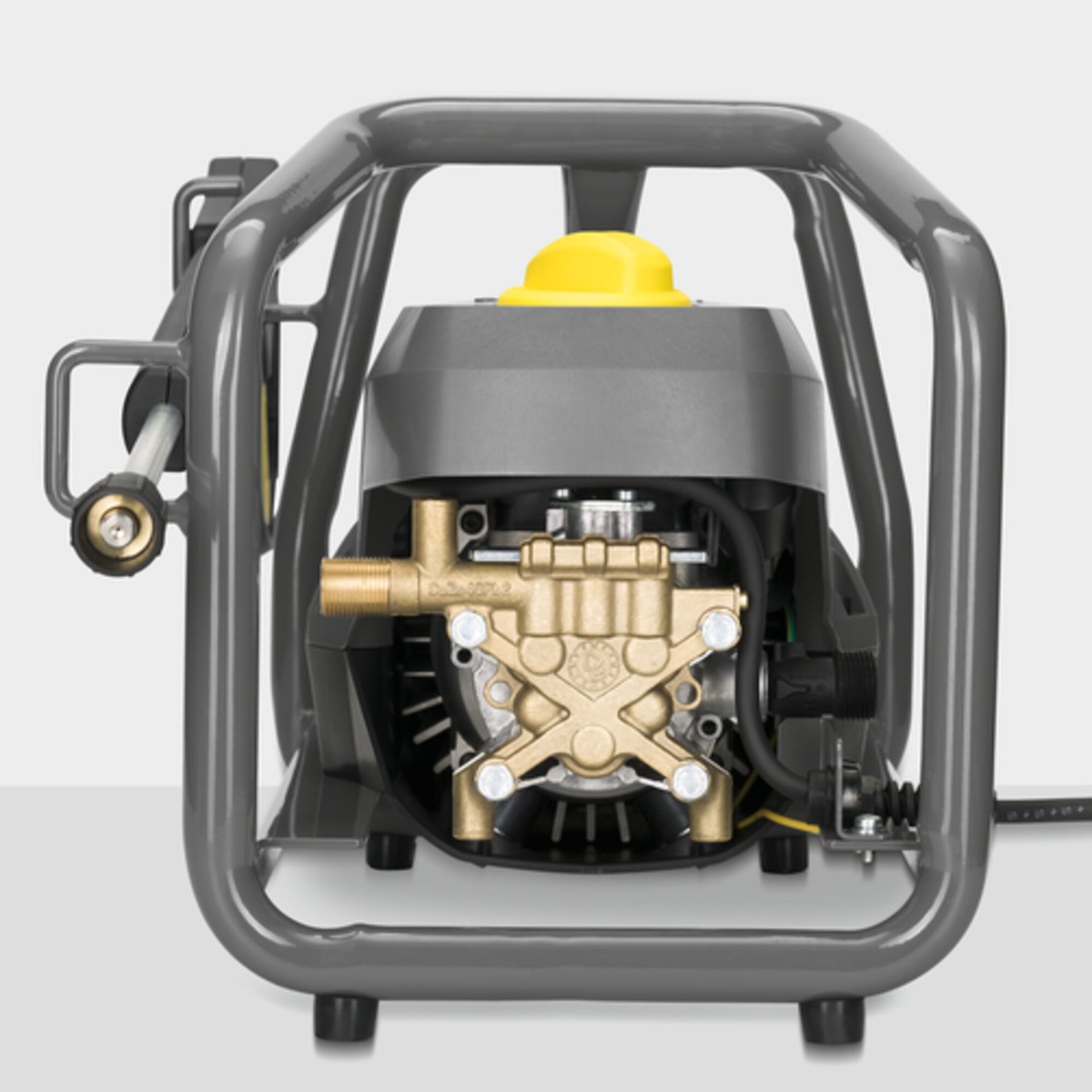

With its brass cylinder heads, the 3-piston axial-piston motor unit ensures an exceptionally long service life. The sturdy pipe frame provides protection in continuous heavy-duty use. Automatic pressure relief for protecting the components extends their life.

Versatile

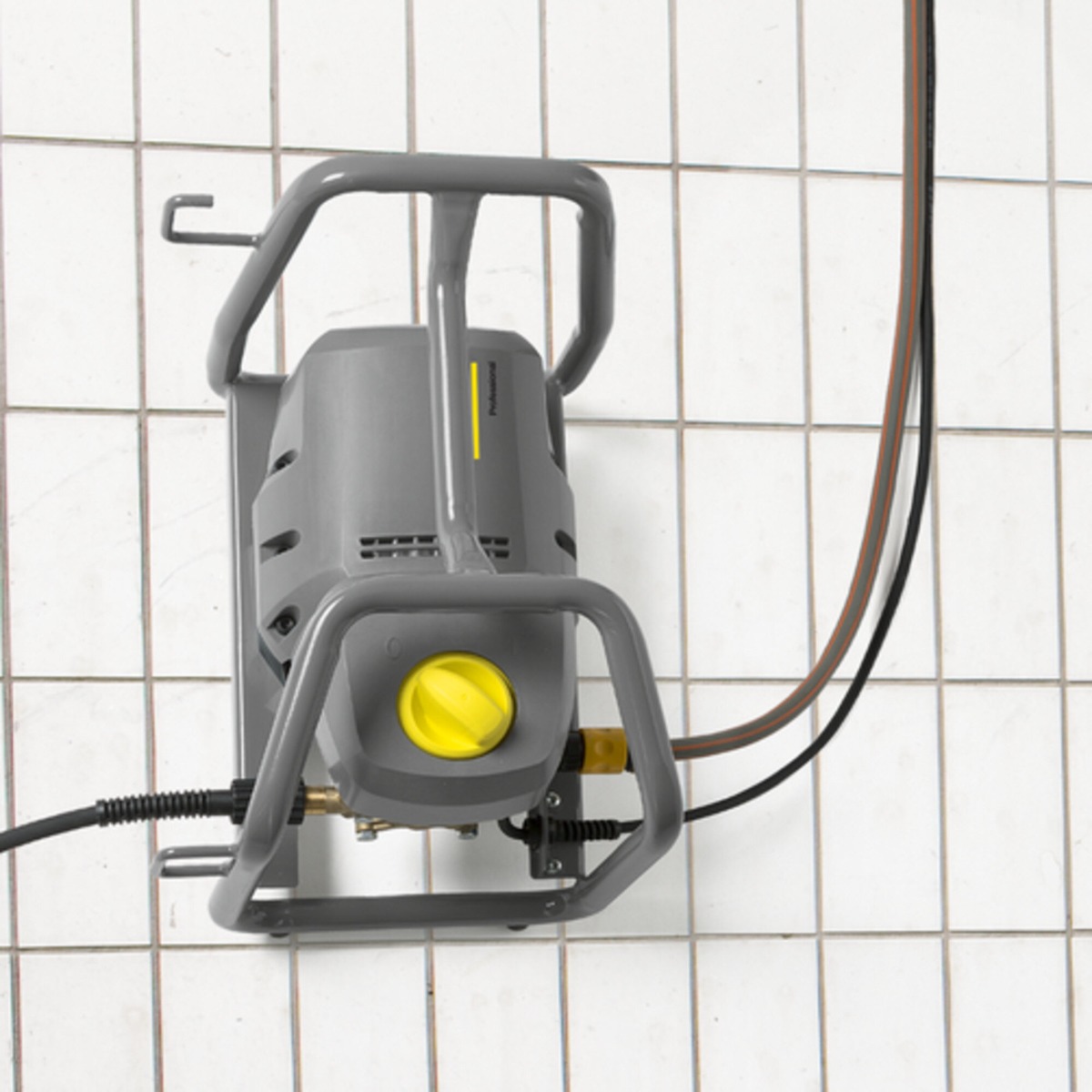

The machine can be attached to the floor or the wall. Can be used vertically or horizontally.

Maintenance-friendly

Excellent access to all relevant components. The fresh water filter protects the components and can be removed and cleaned with no tools required.

Compact design with high mobility

Very compact construction style and minimal weight.
Comfortable handle for simple carrying.
Space-saving storage and transport

Specifications

Technical data

Supply voltage (Ph/V/Hz)	1 / 230 / 50
Flow rate (l/h)	500
Inlet temperature (°C)	60
Working pressure (bar/MPa)	up to 110 / up to 11
Max. pressure (bar/MPa)	160 / 16
Connected load (kW)	2,2
Weight (with accessories) (kg)	21,3
Weight incl. packaging (kg)	23,2
Dimensions (L x W x H) (mm)	475 x 335 x 340

Equipment

Spray gun: Standard
High-pressure hose: 10 m, DN 6, 250 bar
Stainless steel spray lance: 600 mm
Power nozzle
High-pressure spray lance
Pressure switch-off

HD 5/11 Cage Classic High Pressure Washer
