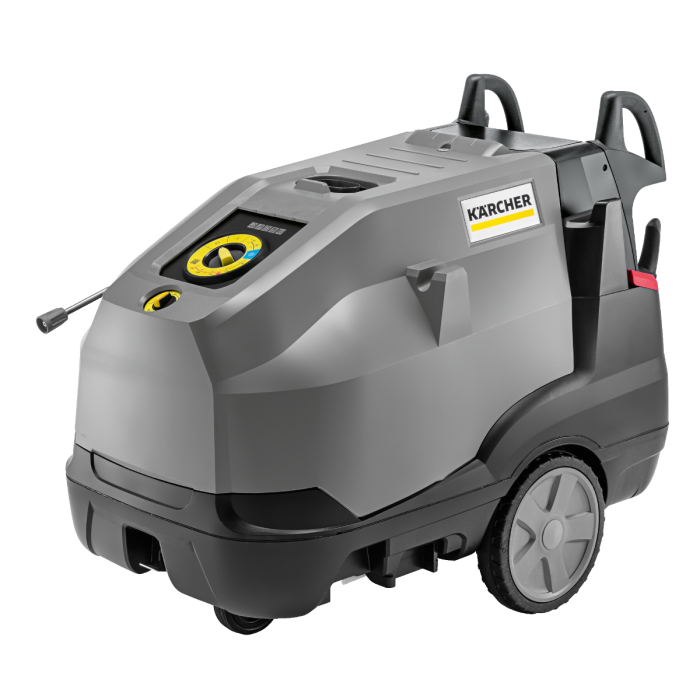

HDS 10/21-4 M High Pressure Washer
User-friendly, powerful hot water high-pressure cleaner with 4-pole, water-cooled electric motor, economical eco!efficiency mode and 2 detergent tanks.
The HDS 10/21-4 M is one of the most powerful hot water high-pressure cleaners in the middle class and also impresses with its sophisticated ergonomics and high level of user-friendliness. Its low-speed, 4-pole and water-cooled electric motor, the robust 3-piston axial pump with ceramic piston and the economical eco!efficiency mode simultaneously ensure maximum performance and reliable, economical operation. The energy-saving EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long spray lance with patented nozzle technology as well as the EASY!Lock quick-release fasteners are also included as standard for fatigue-free and time-saving work. Many other equipment and performance details are also impressive, such as the optimised burner engineering, the 2 detergent tanks, the convenient mobility concept, the extensive safety technology, the simple operation with just one switch or the clever accessory storage options.
Specifications
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Working pressure (bar/MPa) | 30 - 210 / 3 - 21 |
| Temperature (for supply 12 °C) (°C) | min. 80 - max. 155 |
| Connected load (kW) | 8 |
| Consumption of heating oil or gas at full load (kg/h) | 7,3 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 5,8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 160,2 |
| Weight incl. packaging (kg) | 170,1 |
| Dimensions (L x W x H) (mm) | 1330 x 750 x 1060 |
Equipment
Scope of Supply
- Spray gun: EASY!Force Advanced
- High-pressure hose: 10 m, Longlife, DN 8, 400 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment
- Cleaning agent function: 20 + 10 l tank
- ANTI!Twist
- Tanks for cleaning agents, calcification protection and fuel that can be filled from the outside
- Control panel with display light
- Pressure switch-off
- Pole reverse plug (3~)
- 2 cleaning agent tanks
- Dry-running protection
