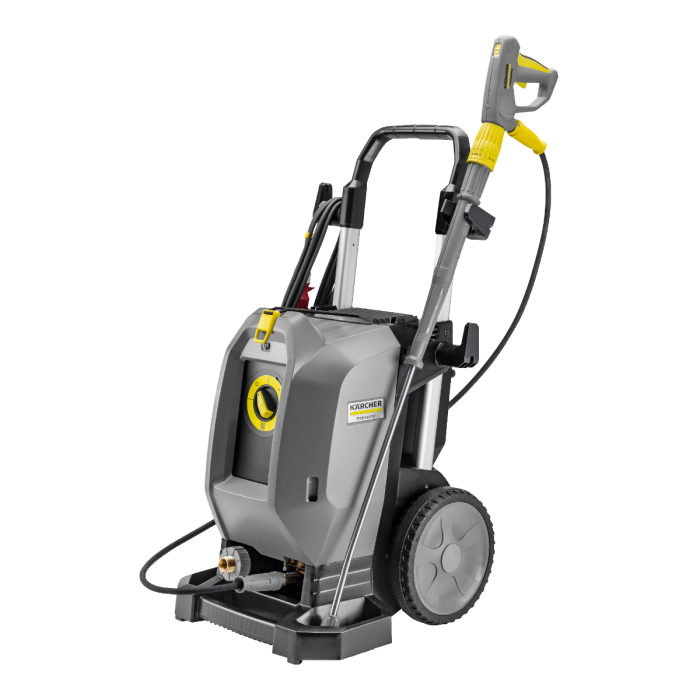

HD 10/25-4 S High Pressure Washer

HD 10/25-4 S High Pressure Washer is available to buy in increments of 1

The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability.

The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic working to the next level. The practically designed EASY!Force Advanced trigger gun makes it effortless to use without any holding force. A rotating 1050-millimetre stainless steel lance delivers maximum efficiency. The Servo Control enables the user to control the pressure and water volume straight from the trigger gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can count on Kärcher to use the best materials to guarantee the highest, longest-lasting quality. Working away inside the machine is a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is driven by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a lightweight yet hard-wearing chassis, making crane loading an option. The upright structure, whereby the motor and pump unit is installed in a vertical arrangement, offers maximum portability in practice. The compact design also incorporates clever accessory storage such as a stowage compartment and adjustable hooks.
Specifications

Technical data

Supply voltage (Ph/V/Hz) 3 / 376 - 424 / 50
Flow rate (l/h) 500 - 1000
Inlet temperature (°C) 60
Working pressure (bar) 80 - 250
Max. pressure (bar) 280
Connected load (kW) 8,8
Power cable (m) 5
Nozzle size 047
Water inlet 1″
Weight (with accessories) (kg) 69,8
Weight incl. packaging (kg) 78,1
Dimensions (L x W x H) (mm) 607 x 518 x 1063

Equipment

Scope of Supply

  • Spray gun: EASY!Force Advanced
  • High-pressure hose: 10 m, Premium quality, ID 8, 315 bar
  • Spray lance: 1050 mm
  • Power nozzle
  • High-pressure spray lance
  • Servo control

Equipment

  • 4-pole, three-phase motor with air and water cooling
  • 3-piston axial pump: With stainless steel pistons
  • Pressure switch-off
  • Integrated water fine filter
  • Electronic motor protection with LED display
  • Oil level indicator
  • Brass water inlet
